Hacking TP-Link WR1043ND Part 4

To Tweak the OpenWRT for Pure Performance there is no other way than editing config files from Terminal so I hope you actually read Part 3 before.
There are 4 parts to Tweaking the Performance

1. Wireless Performance
2. Wired Performance
3. Web Performance
4. QoS (Quality Of Service)

Tweaking Wireless Performance:

Setting to Wireless N with G backward compatibility

The TP-Link WR1043ND Hardware has a 3 Transmit 3 Receive Radio that is only Single Band with 20/40MHZ  Frequency. It has Wireless B/G/N Capability.
To fully understand WiFi Standards you need to read up on IEEE 802.11 standards.
We start by tweaking the Radio.

Wireless N allows backward compatibility with B and G, you need to set it to 802.11g+n.

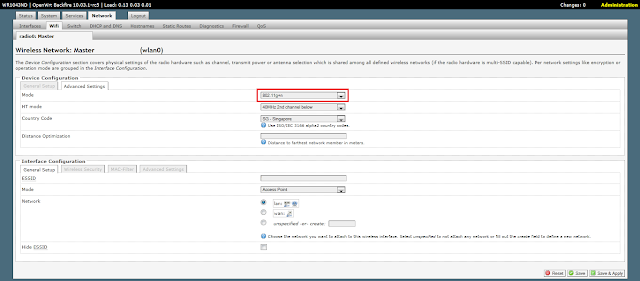

You can do this by logging into the Router via Putty using vi editor edit the file called "wireless" in /etc/config/, or do it in LuCI Web Interface(Router Config Page).

Adjusting Channel Width:

Next you need to make sure the Router is using 40MHZ Channel Width, this will allow greater throughput.
You can do this by logging into the Router via Putty using vi editor edit the file called "wireless" in /etc/config/

config 'wifi-device' 'radio0'
        option 'type' 'mac80211'
        option 'channel' '7'
        option 'macaddr' 'XX:XX:XX:XX:XX:XX'
        option 'hwmode' '11ng'
        option 'htmode' 'HT40-'

        option 'noscan' '1'

        option 'country' 'US'
        list 'ht_capab' 'SHORT-GI-40'
        list 'ht_capab' 'DSSS_CCK-40'
        option 'disabled' '0'

        option 'txpower' '20'

        option 'bursting' '1'

        option 'ff' '1'

        option 'compression' '1'

        option 'xr' '1' #eXtended Range

        option 'ar' '1' #Adaptive Rates

config 'wifi-iface'
        option 'device' 'radio0'
        option 'network' 'lan'
        option 'mode' 'ap'
        option 'ssid' 'Your_SSID_Here'
        option 'frag' '2346'
        option 'rts' '2347'
        option 'encryption' 'psk2'
        option 'key' 'your_secret_key_here'


Note that there are 2 htmodes, HT40+ and HT40- you set them based on the channel available. If you set it wrongly you have to log in to the router via Ethernet Cable and change it back.
By rights 'htmode' is not allowed if there are competing BSSID using that channel (the good neighbor regulation), but you can override that with 'noscan' option. There is also a distance optimization setting which I tested the best values at 20-25.

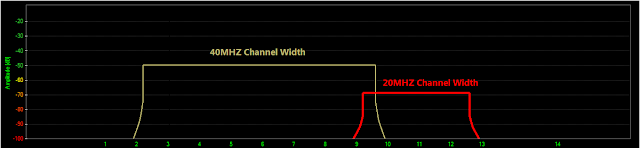

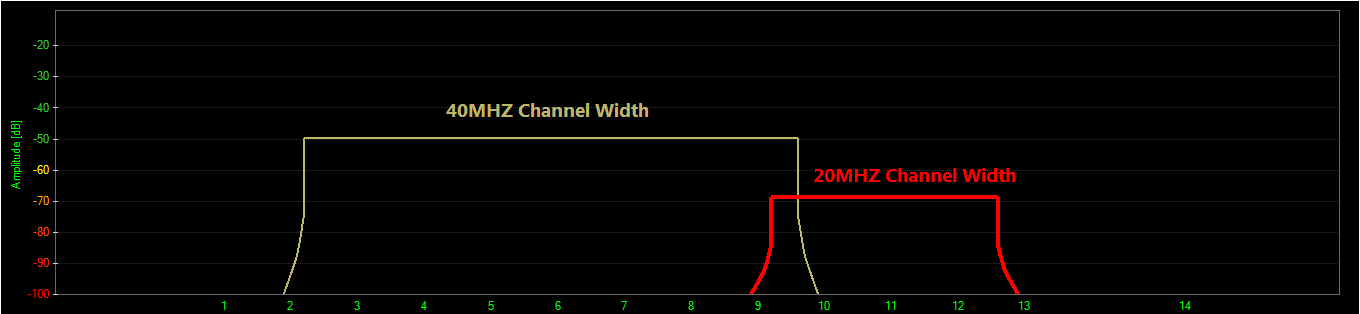

Below is a graph displaying the difference between 40MHZ Channel Width and 20MHZ Channel Width.
Note that you can define more than 1 Access Point on OpenWRT. You can configure a Second AP as Guest and Fire-walling it from your own LAN.

Higher TXPower (Transmit Power)

Transmit Power allows you to resize the cell. Max Value is 20.
You can also try placing the Wireless Router at a higher place for better signal strength.

Tweaking Wired Performance:

Next you need to make sure the Router Ethernet Performance is adjusted by changing the sysctl variable this will allow greater throughput.
You can do this by logging into the Router via Putty using vi editor edit the file called "sysctl.conf" in /etc/

kernel.panic=3
net.ipv4.conf.default.arp_ignore=1
net.ipv4.conf.all.arp_ignore=1
net.ipv4.ip_forward=1
net.ipv4.icmp_echo_ignore_broadcasts=0
net.ipv4.icmp_ignore_bogus_error_responses=1
net.ipv4.tcp_ecn=0
net.ipv4.tcp_fin_timeout=30
net.ipv4.tcp_keepalive_time=120
net.ipv4.tcp_syncookies=1
net.ipv4.tcp_timestamps=0
net.core.netdev_max_backlog=18000
net.ipv4.tcp_moderate_rcvbuf=1
net.netfilter.nf_conntrack_checksum=0
net.ipv4.netfilter.ip_conntrack_checksum=0
net.netfilter.nf_conntrack_max=32768
net.ipv4.netfilter.ip_conntrack_tcp_timeout_established=3600
net.ipv4.netfilter.ip_conntrack_udp_timeout=60
net.ipv4.netfilter.ip_conntrack_udp_timeout_stream=180
# Remove the # from the line below if you are using ipv6
#net.ipv6.conf.all.forwarding=1

# disable bridge firewalling by default
#net.bridge.bridge-nf-call-arptables=0
#net.bridge.bridge-nf-call-ip6tables=0
#net.bridge.bridge-nf-call-iptables=0

# increase TCP max buffer size setable using setsockopt()
# 16 MB with a few parallel streams is recommended for most 10G paths
# 32 MB might be needed for some very long end-to-end 10G or 40G paths
net.core.rmem_max = 16777216
net.core.wmem_max = 16777216
# increase Linux autotuning TCP buffer limits
# min, default, and max number of bytes to use
# (only change the 3rd value, and make it 16 MB or more)
net.ipv4.tcp_rmem = 4096 87380 16777216
net.ipv4.tcp_wmem = 4096 87380 16777216

All the TCP tweaks are derived from ESnet
Note: These tweaks are not found on OpenWRT How Tos, however I soon discovered that someone is working on bufferbloat hence the tweaks on buffersize should be approached with caution.


Adjusting the Transmit Queue Length.

You can do this by logging into the Router via Putty using vi editor edit the file called "rc.local" in /etc/

    # Put your custom commands here that should be executed once
    # the system init finished. By default this file does nothing.
    ifconfig eth0 txqueuelen 10500
    ifconfig wlan0 txqueuelen 7935
    exit 0

Add the 3 lines above to increase the txqueuelen on Ethernet Interface.
eth0.1 is the LAN Port while eth0.2 is the WAN Port.
Txqueuelen is also a network buffer hence the same approach to tweaking as above applies.

Also if you have a Windows File Share you want to tell the Router firewall not to monitor SAMBA Packets.

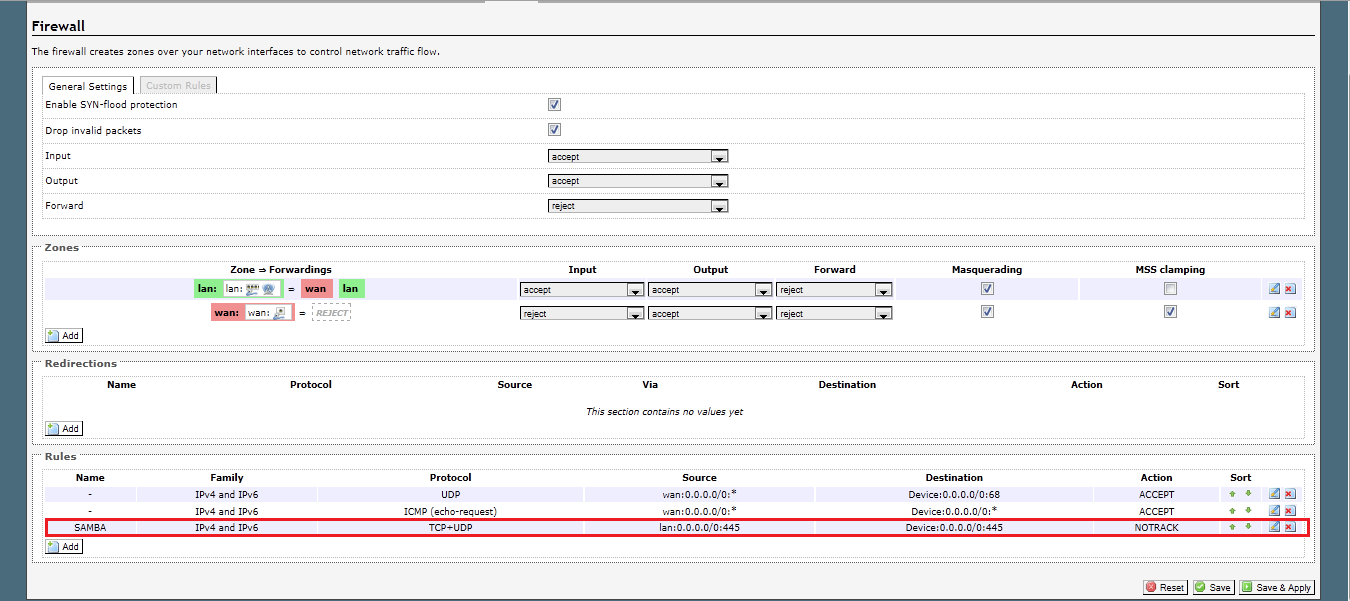

Windows Share also known as SAMBA in Linux uses the Port 445 so you need to tell OpenWRT to stop monitoring Packet Originating from LAN using Port 445.
Note: If you turn on masquerade and put SAMBA on notrack, NetBIOS server might not work.

Tweaking Web Performance:
Web Peformance typically require a lot of DNS Look up so you want to tell OpenWRT to use the Fastest DNS Server available.
You can do this by logging into the Router via Putty using vi editor edit the file called "dnsmasq.conf" in /etc/
and add the fastest DNS Server closest to you.
Add the Line Below and change the IP of the server to YOUR fastest DNS Server. My Fastest DNS Servers may not be your Fastest DNS Server.

dhcp-option=6,165.21.83.88,8.8.8.8,208.67.222.222

Blue is a Singapore ISP DNS Server, Green is Google DNS Server, Red is OpenDNS Server.
There is no limit of the number of DNS Server you can set on OpenWRT

Install packages that boost performance.
You can do this by logging into the Router via Putty.

opkg update

opkg install pepsal kmod-ipt-nathelper-extra

Quality of Service

What is Quality of Service?
Quality of Service makes it so that during torrenting, your webpages doesn't take a long time to load even though you are on a 1Mbps Connection.
It does this by prioritizing network traffic, putting webpage network packets in higher importance than torrent packets.
The step to installing QoS is logging into the Router via Putty then

opkg install luci-app-qos

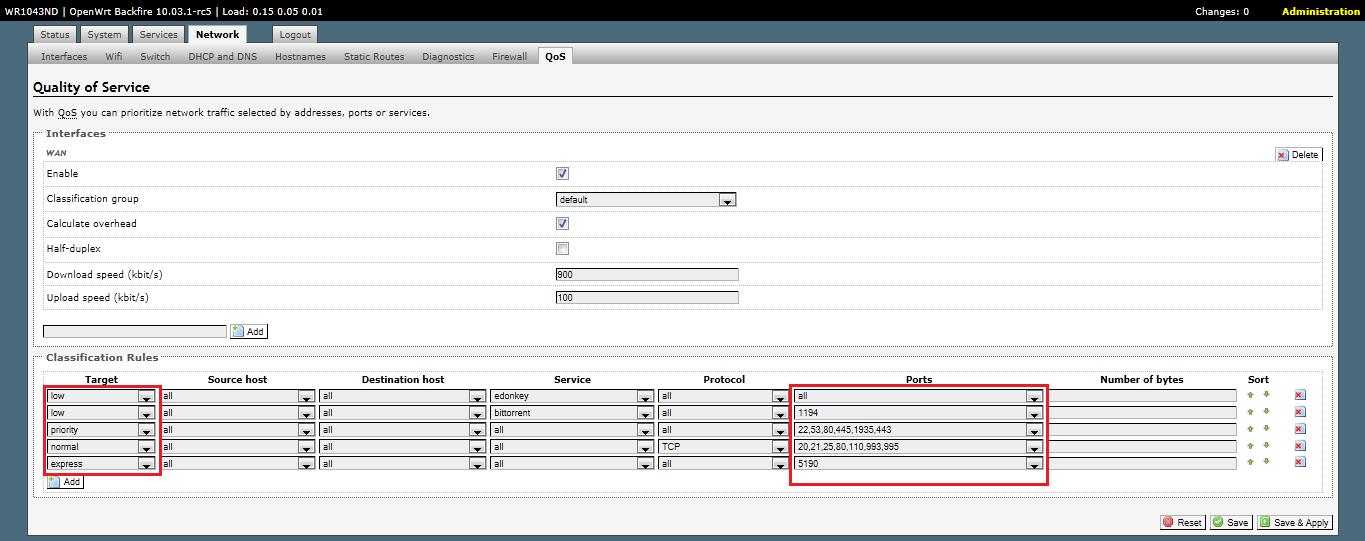

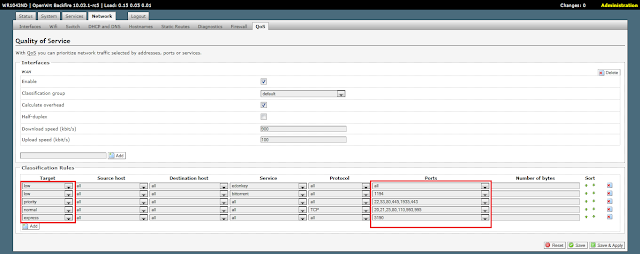

You set the QoS by setting the Port the Network Originate from and the Priority. Or you can set layer 7 filter to detect torrent traffic.

Hopefully you learn a lot from this series of blog post and enjoy the high performance of your Modified Router running on OpenSource Software.
If you run a Windows Share Server when you place the laptop beside the router and do a copy you should be getting insane WiFi Speeds @ 150Mbps at 5m line of sight
Let the numbers speak for themselves!

In case you modified the wrong config files and got lock out the fail safe mode is here
